    OLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument

    Ask Lasest Price
    Brand Name : Delta
    Model Number : OLTC
    Certification : ISO9001
    Price : USD1.0
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 100 sets Switch Analysis Instrument each month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    OLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument

    OLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument

    Introduction:

    OLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument can record switch operation waveform in overall process. The longest time is 6.4s.
    OLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument can test various parameters such as transition waveform, transition time, transition resistance and three phase synchronization one time and analyze results automatically.
    OLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument has power-off protection, over-voltage protection, perpetual clock and high-speed printing.


    Features:

    Test transformers of type Y0 Y Δ and display resistance value directly.

    Automatically analyze waveform fault and mark the fault.

    Automatically adjust resistance value and time range according to sampling data.

    Transformer type Δ is able to display to synchronization status of three phase.

    Be able to test with winding or without winding.

    Four terminal connection mode and provide high accuracy of resistance measurement.

    Continuous test to save time of power off.

    Make word report.

    800×480 colorized LCD with touch screen and high speed printer.

    Store 1000 groups of data and also can be saved by USB flash disk.


    Parameters:

    Item Name

    OLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument

    Three-phase constant current source chargeThree phase constant current source charge
    Maximum voltage of the port24V
    Maximum range of transition resistance100Ω
    Measuring range1A: 0.4Ω~20Ω 0.2A: 10Ω~100Ω
    Record time of waveform300ms
    Sample rate30k
    Resolution of time0.1ms
    Resolution of resistance0.1Ω
    Accuracy of transition resistance±5% Reading±0.1Ω
    Accuracy of transient time±0.5% Reading±0.2mS
    Temperature-10-40°C
    Humidity<85%RH

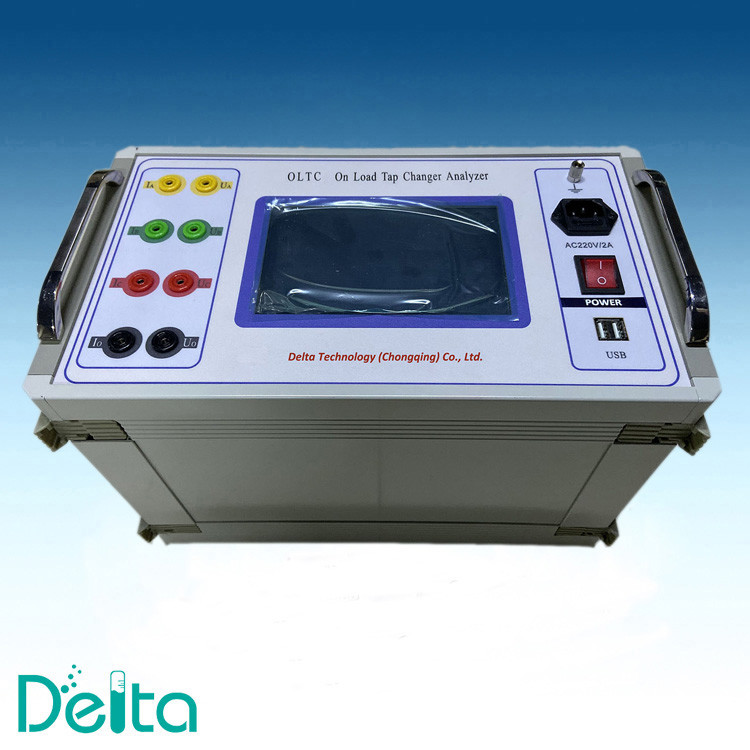

    Oltc High Quality Electrical Testing on Load Tap Changer Tester Oltc Testing​Real Picture:

    OLTC On Load Tap Changer Oltc Transformer Switch Analysis InstrumentOLTC On Load Tap Changer Oltc Transformer Switch Analysis Instrument
