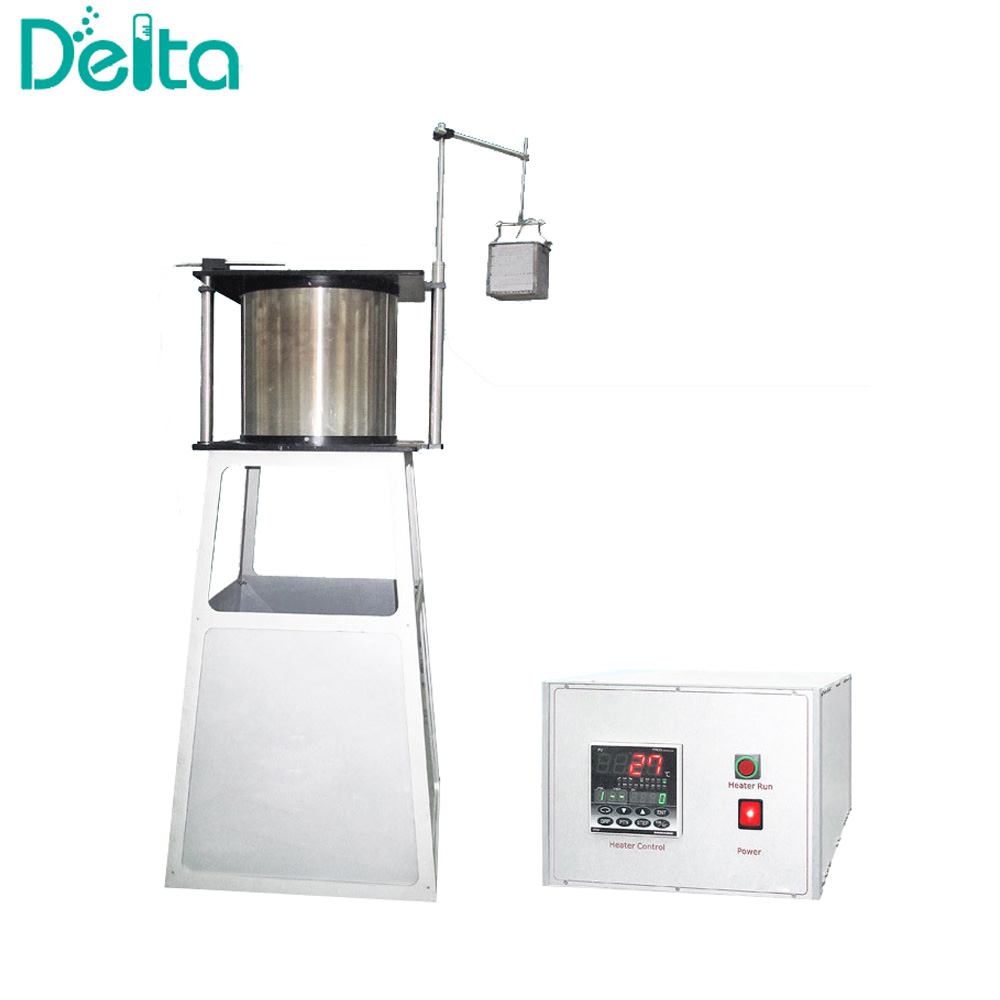

BS 8414 Appendix C Smoldering Combustion Test Furnace
Brief Introduction:
The is mainly used for testing the fire resistance performance of
external wall insulation systems in buildings.
BS 8414 Fire Resistance Test Equipment For External Cladding
Systems is suitable for testing the smoldering characteristic of
insulation materials in building external insulation systems.
This test method is Appendix C of BS 8414 "Fire performance of
external cladding systems Test method for non-loadbearing external
cladding systems", which is the smoldering characteristic test
method.
Main Features:
1. Equipped with a programmable temperature controller, providing a
standard temperature rise curve;
2. The testing time is 24 hours, and the temperature is displayed
and controlled throughout the entire process;
3. Complies with the testing standards BS 8414 and GB/T29416-2012
Appendix C Test Methods for Fire Performance of Building External
Wall Insulation Systems;
4. The testing software can display temperature values and
temperature curves;
5. Provide furnace thermocouples and sample surface thermocouples;
6. If the center temperature of the sample is the same as the
furnace temperature, it indicates that there is no tendency for
smoldering of the sample within the test cycle and temperature
range;
7. During the entire experimental process (24 hours), if the sample
exhibits a test trajectory with self-heating characteristics, it is
determined that the sample has a tendency to smolder.
Size and weight:
Size: 1220 * 750 * 1340mm
Weight: 39KG
Installation requirements:
Power requirements: 220V, 10A
Environmental temperature: 10 ° C to 35 ° C
Installation space: Floor-standing fume hood
|
|
