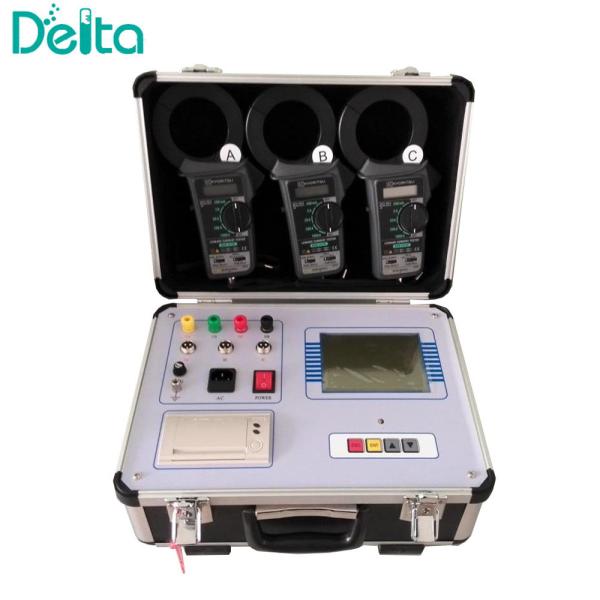

DC-C50 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter
Introduction:
Capacitors in the capacitor bank are all in parallel in the field,
so the leads need to be removed when workers measure with a general
capacitance meter, which is a heavy workload and easily causes
wiring errors.
Our DR-C50 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter is newly developed to measure single or three capacitors of a group
of parallel capacitors without disconnecting the wire, and it can
also measure the inductance, resistance, and current.
The wiring is convenient, the operation is simple, which reduces
the workload of the maintenance personnel and greatly improve the
testing efficiency of the site, and provides security for the
normal operation of the power grid.
Main Parameters:
| No. | Item Name | DR-C50 0.1UF~3300UF Automatic Capacitance Bridge Tester Meter | ||
| 1 | Capacitance measurement | Capacitance range | 0.01μF ~ 3,300μF | |
| Capacity range | 5 ~ 20,000kvar | |||
| Accuracy | ±1.0% | |||
| Resolution | 0.001μF | |||
| 2 | Current measurement | Measurement range | 0~20A | |
| Accuracy | ±3.0% | |||
| Resolution | 0.01A | |||
| 3 | Inductance measurement | Measurement range | Small inductance method: 1mH-5Mh; Large inductance method: 5Mh-50H | |
| Inductive reactance measurement range | 50mΩ~20KΩ | |||
| Accuracy | ±3.0% | |||
| Resolution | 0.01Mh | |||
| 4 | Resistance measurement | Measurement range | Small inductance method: 50mohm-1ohm; Large inductance method: 1ohm-20Kohm | |
| Accuracy | 0.01ohm | |||
| 5 | Power supply | 220V±10%, 50Hz | ||
| Rated output | 2V/20V/500VA | |||
| 6 | Working environment | 0℃ ~ +40℃,≤90%RH | ||
| 7 | Dimension | 400mm*320mm*220mm | ||
| 8 | Weight | 8kg | ||
|
|
