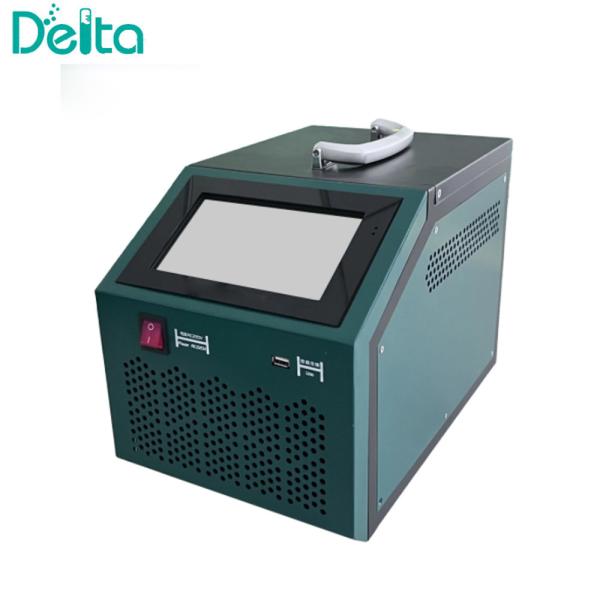

XDC-3932 Battery Charging Discharging Test Battery Regenerator Battery Recycling Device
Brief Introduction:
XDC-3932 Battery Charging Discharging Test Battery Regenerator Battery Recycling Device fully utilizes the characters of high frequency, low voltage, and high current to decompose the lead sulfate crystals adhered to the surface of the battery plate in the role of directional current, which revert to lead ions and realize the battery charge and repair.
XDC-3932 Battery Charging Discharging Test Battery Regenerator Battery Recycling Device all-in-one terminal is used to perform constant current discharge, intelligent charge, and cyclical charge and discharge, which can achieve the purpose of activation by cyclical & deep operation to activate the battery-activated substance.
Main Parameters:
| Voltage range | 1.5～16V (2V/6V/12V) | ||
| Discharge range | 1.7~～2.4V (2V) | 5.4～7.2V (6V) | 10.8～14.5V (12V) |
| Charge range | 1.7～2.4V (2V) | 5.4～7.2V (6V) | 10.8～14.5V (12V) |
| Discharge current | 0~100A | 0~60A | 0~30A |
| Charge current | 1~100A | 1~60A | 1~30A |
| Display | 7-inch LCD touch screen with 1024 x 800 resolution | ||
| Voltage test accuracy | ±0.5%FS+0.1V | ||
| Current test accuracy | ±1%FS+0.1A max. range 100A | ||
| Voltage accuracy | 0.01V | ||
| Discharge current accuracy | 0.01A | ||
| Data storage | Internal:16Gbit FLASH; External 16G storage | ||
| Data communication | RS485, USB | ||
| Working mode | Activation, constant-current, constant-voltage, float-charge | ||
| Host protection function | Over-temperature, over-current, current runaway trigger shutdown protection | ||
| Abnormal protection | Power line drop, mains cable drop | ||
| Over temperature protection | Built-in temperature sensing probe, temperature over 75°C, the device automatically stops discharging | ||
| Working environment | |||
| Cooling mode | Forced air cooling | ||
| Temperature | Operating temperature: -5～50℃, Storage temperature: -40～70℃. | ||
| Humidity | Relative humidity : 0～90%(40±2℃) | ||
| Altitude | Available below 4000m | ||
| Power supply | 220VAC (-20% ~ +30%), 45 ~ 65Hz | ||
| Withstand voltage | Input-shell: 2200Vdc 1min / Input-output: 2200Vdc 1min / Output-shell: 700Vdc 1min | ||
| Safety | Satisfies EN 610950 | ||
|
|
