    GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer

    Ask Lasest Price
    Brand Name : Delta
    Model Number : GTB
    Certification : ISO9001
    Price : USD1.0 / set Dry Type Testing Transformer
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets / month
    Delivery Time : Within 10 days after the order is confirmed
    • Product Details
    • Company Profile

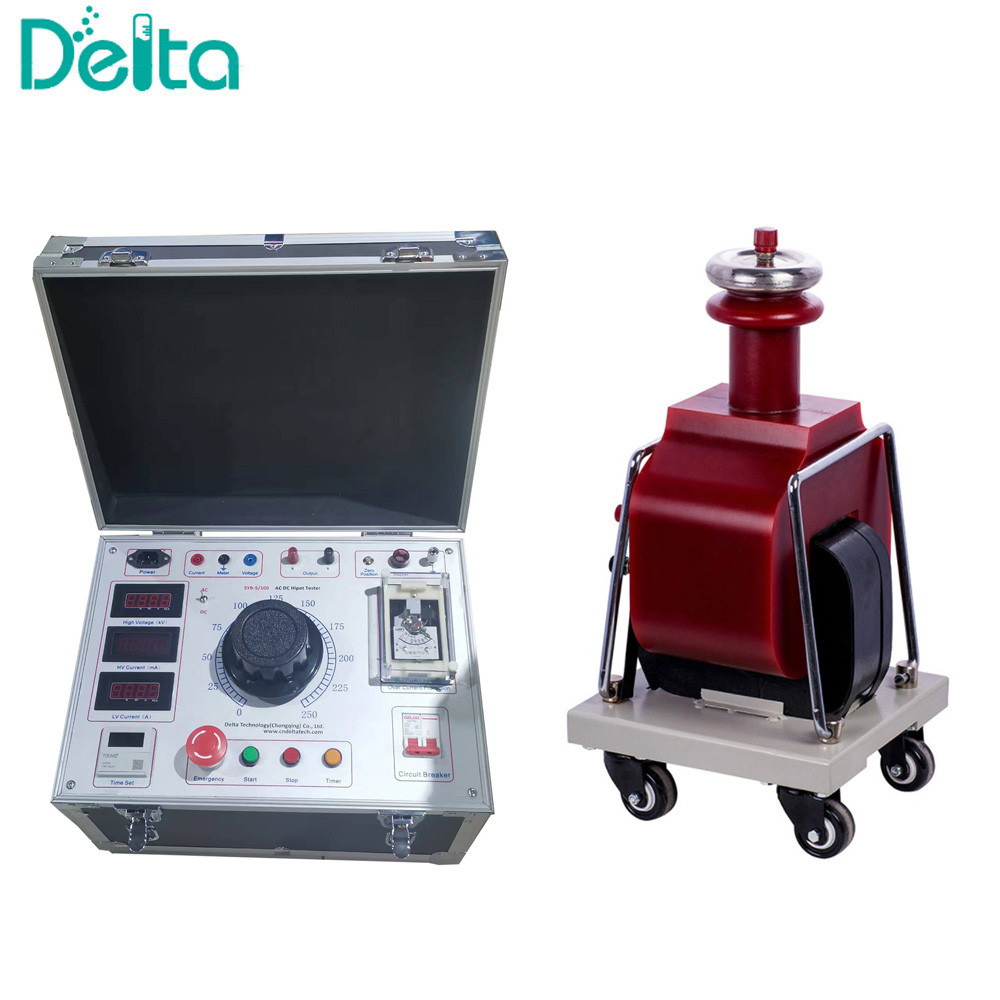

    GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer

    GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer


    Introduction:
    GTB Power Frequency AC DC Withstand Voltage Dry Type Testing Transformer
    uses advanced production equipment, and new technology of coil winding epoxy vacuum pouring and CD-type iron core, which obviously reduces weight and volume, improves insulating strength and humidity resistance level, effectively weakening leakage magnet resulting in greatly enhancing the ability to withstanding the impact of testing short circuit current of the transformer. This series of products are new generation high voltage testing transformers used for AC and DC in China.

    Features:

    1. GTB Dry Type Testing Transformer has features of light weight, small volume, beautiful appearance, stable performance, convenient usage and carrying, especially suitable for site operation.
    2. GTB Dry Type Testing Transformer is applicable to the power system and all power users to detect on-site the insulating performance test of all electrical equipment, high voltage power sources of all appliance's voltage system, or equipment with DC high voltage small current.


    Parameters:

    1. Impedance voltage: 4.5%-8%
    2. Surface temperature rise: sine wave
    3. Idle load loss consumption: 0.2%-0.35%
    4. Allowable continuous operation time: 2 hours
    5. Interrupted operation time: Continuous

    ModelCapacity
    (KVA)
    Input voltage(V)Output voltage(KV)Output current(mA)Output DC high voltage(KV)Max. External dimension(mm)Weight
    (kg)
    GTB-1.5/501.5200
    (400)
    503070kV230*180*37013
    GTB-3/50360310*250*57030
    GTB-6/506120300*310*68046
    GTB-10/5010200320*350*72073
    GTB-20/5020400360*350*72085
    GTB-30/5030600500*380*780120
    GTB-5/100510050140kV360*350*96080
    GTB-10/10010100360*350*96080
    GTB-20/10020200500*380*880120
    GTB-30/10030300580*380*880160
    GTB-50/10050500650*460*1010230
