Vlf 33kv Cable Testing 0.01Hz 30kv to 80kv AC Hipot Tester

Introduction:

• VLF AC Hipot Tester is designed and manufactured for electrical equipment very low frequency withstand voltage test.

• Very low frequency withstand voltage test is essentially an alternative of power frequency withstand voltage test.

• VLF AC Hipot Tester is much smaller, lighter and portable than power frequency withstand voltage tester. It is proved home and abroad that 0.1Hz ultra-low frequency withstand voltage test can replace power frequency withstand voltage test.

• VLF AC Hipot Tester can be applied for 10kV, 35kV, 300MW thermal power machine, 10kV, 35kV power transformer and other electrical equipment.

Features:

• Max voltage output: refer to following table;

• Output frequency: 0.1Hz, 0.05Hz, 0.02Hz;

• Measurement accuracy: 2.5%;

• Positive and negative voltage peak errors < 2.5%RDG+0.3%FS;

• Voltage wave form distortion: <3%;

• Insulation resistance measurement error: <2.5%;

• Leakage current measurement error: <2.5%;

• Power supply:AC220V ± 10%, 50Hz/60Hz;

• Environment temperature: 0~50°C;

• Humidity:≤85%RH;

Parameters:

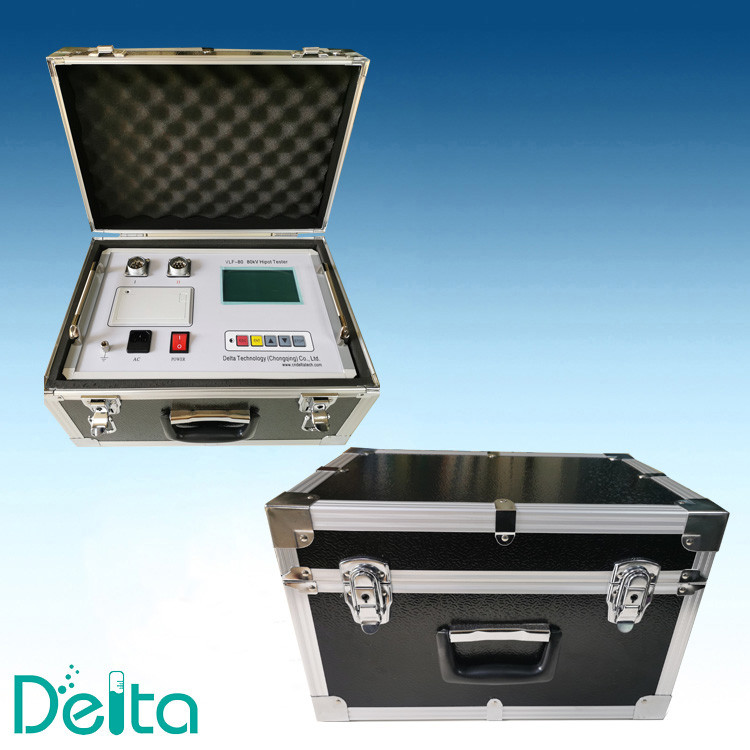

Vlf 33kv Cable Testing 0.01Hz 30kv to 80kv AC Hipot Tester Real Picture:

Delta Technology (Chongqing) Co., Ltd. is a high-tech enterprise focusing on R&D, production, and sales of Electric Testing Equipment and Fire Resistance Testing Equipment.

Safety is important to the electrical, construction, and transportation industries, thus, Delta Technology aims to help users test the safety of transformers, high-voltage switches, cables, building materials, transportation materials, etc.

Since its establishment, the company has always adhered to the principles of "quality assurance and service priority", through years of development, our products sell well at home and abroad.

With the best products, best services, and best reputation, our company is your reliable partner in testing equipment!
