| Brand Name : | Delta |
| Model Number : | ZJA |
| Certification : | ISO9001 |
| Price : | USD1.0 / set |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100 sets / month |
| Delivery Time : | Within 30 days after the order is confirmed |
Transformer oil is very important to reliability, performance and
lifetime of transformer. The oil should be free from moisture,
dissolved gases, particles, etc. Even some new oils may require
treatment to acceptable level before injecting into the
transformer;

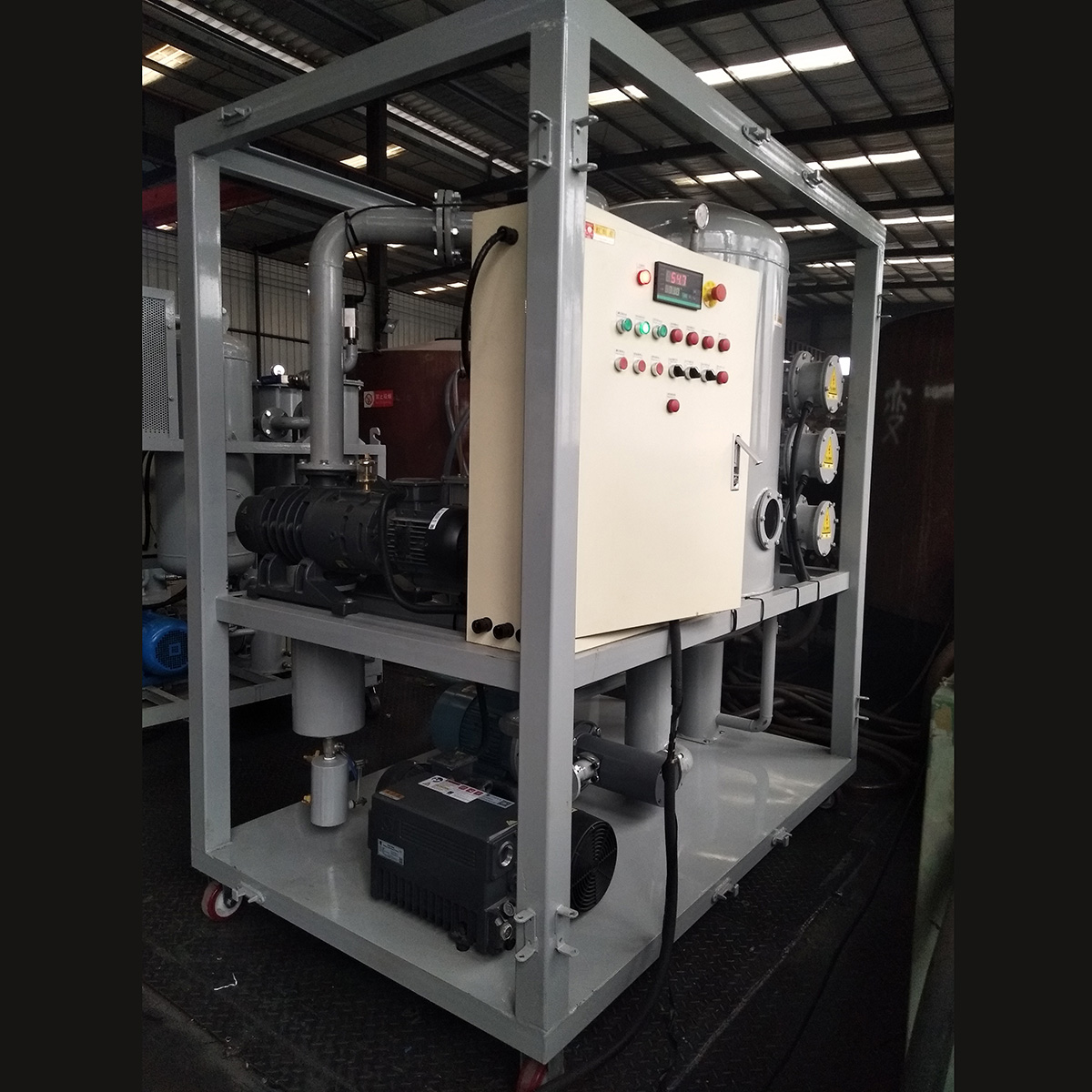

Our ZJA Outdoor Using Dirty Insulation Oil Purifying Machine is
professional for treatment of transformer oil, it can efficiently
remove water, gases, acid, particles, etc. from the oil.
With the advantages of high working vacuum, high filtration speed,
oil quality protection, the filter advanced the oil treatment
technique and equipment performance and once can raise the puncture
voltage up to over 35V.

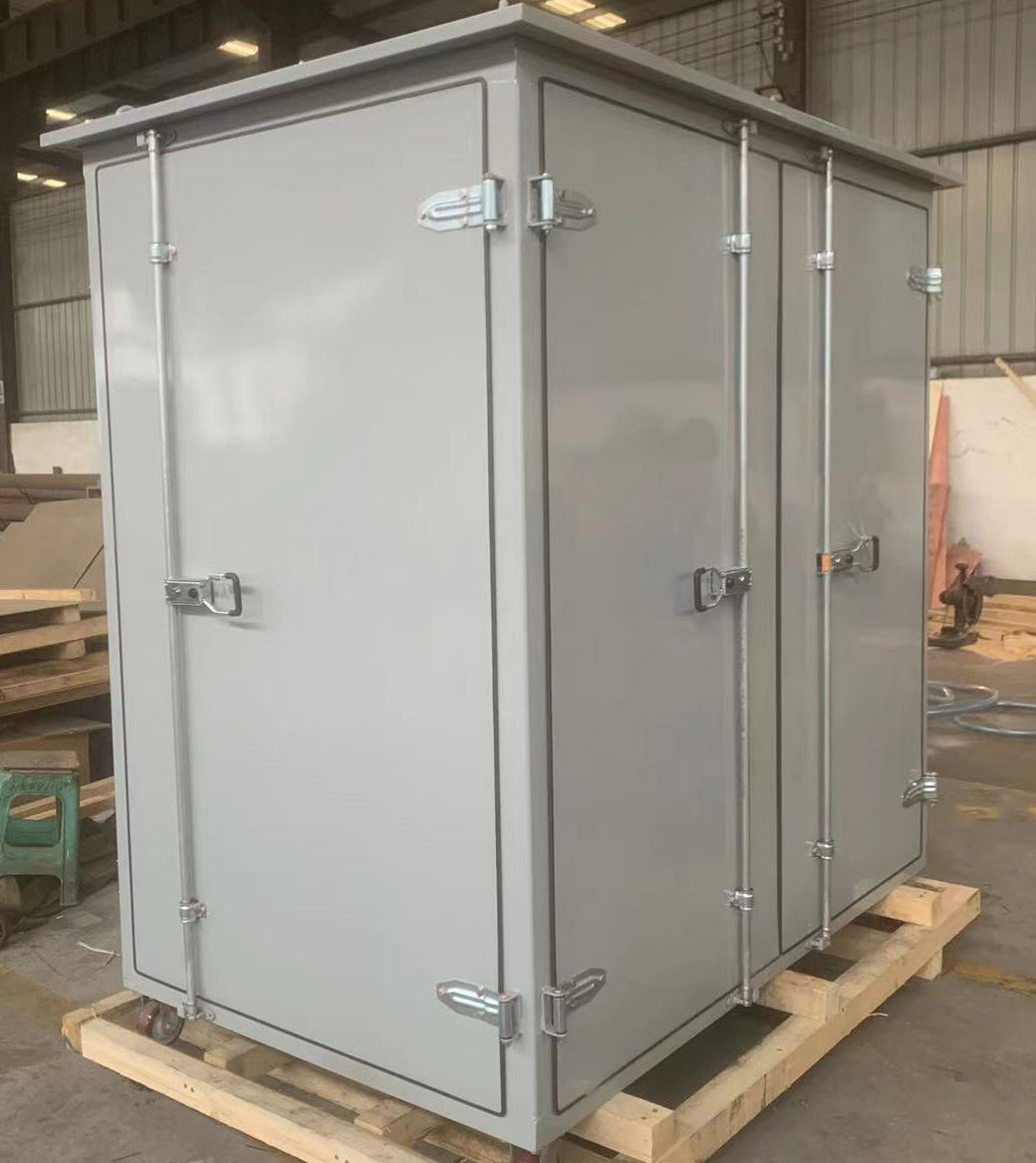

ZJA Outdoor Using Dirty Insulation Oil Purifying Machine can be
installed by sealed regular or movable with a trailer, so it is
suitable to treat oil, fill oil in vacuum chamber and circulating
dry hot-oil when large transformer is being installed and
overhauled.
| Parameters | Unit | 1.8KY | 3KY | 6KY | 9KY | 12KY | 18KY |
| Flow Rate | L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
| Working Vacuity | Pa | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 | ≤80 |
| Working Pressure | Mpa | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 |
| Temperature Range | ºC | 45-65 | 45-65 | 45-65 | 45-65 | 45-65 | 45-65 |
| Power Supply | 50Hz | 380V | 3-Phase | 4-Wire | or as request | ||
| Total Power | KW | 16 | 36 | 70 | 100 | 150 | 200 |
| Inlet/Outlet Diameter | mm | 20/20 | 25/25 | 32/32 | 40/40 | 50/50 | 65/65 |
| Length | mm | 1600 | 1800 | 2200 | 2500 | 2800 | 3450 |
| Width | mm | 1250 | 1450 | 1600 | 1950 | 2150 | 2600 |
| Height | mm | 2000 | 2200 | 2450 | 2700 | 3000 | 3000 |
| Weight | Kg | 500 | 700 | 1460 | 1800 | 2400 | 4000 |
One pot with two-stage vacuum-segregating space, it comes into
being different pressure so as to keep oil line balance between two
stages.
Imported vacuum-pump from Europe has preceding level in the world
and high air pump speed guarantee high working vacuity.
New technology of vacuum-segregating adopts particular spinning
disk and stainless steel machine with dehydration and air pump.
Using new type of heating equipment which can reduce heating
burthen and extend oil life.
Oil level control adopts photoelectric way of which the main
components are imported from Switzerland.
Customers can choose equipment equipped with all or partly imported
components.
It's equipped with filter assemblies imported from Italy.
All pumps must be airproofed by our factory, moreover running
without noise and leakage. extended oil life.
|
|
