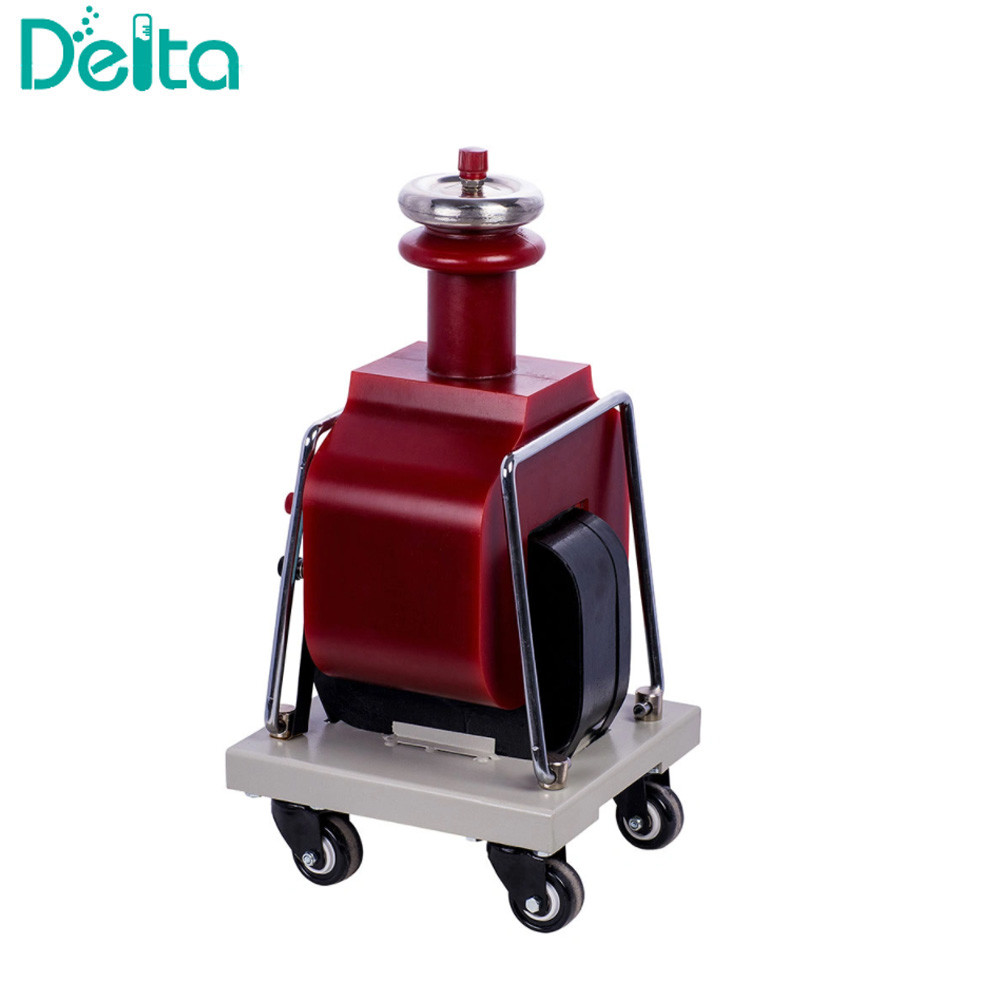

GTB Series Portable Small Size 100kV AC DC Dry Type Hipot Tester
Introduction:
GTB Series Dry Type Hipot Tester uses advanced production
equipment, and new technology of coil winding epoxy vacuum pouring
and CD-type iron core, which obviously reduces weight and volume,
improves insulating strength and humidity resistance level,
effectively weakening leakage magnet resulting in greatly enhancing
the ability to withstanding the impact of testing short circuit
current of the transformer. This series of products are new
generation high voltage testing transformers used for AC and DC in
China.
Features:
Parameters:
| Model | Capacity (KVA) | Input voltage(V) | Output voltage(KV) | Output current(mA) | Output DC high voltage(KV) | Max. External dimension(mm) | Weight (kg) |
| GTB-1.5/50 | 1.5 | 200 (400) | 50 | 30 | 70kV | 230*180*370 | 13 |
| GTB-3/50 | 3 | 60 | 310*250*570 | 30 | |||
| GTB-6/50 | 6 | 120 | 300*310*680 | 46 | |||
| GTB-10/50 | 10 | 200 | 320*350*720 | 73 | |||
| GTB-20/50 | 20 | 400 | 360*350*720 | 85 | |||
| GTB-30/50 | 30 | 600 | 500*380*780 | 120 | |||
| GTB-5/100 | 5 | 100 | 50 | 140kV | 360*350*960 | 80 | |
| GTB-10/100 | 10 | 100 | 360*350*960 | 80 | |||
| GTB-20/100 | 20 | 200 | 500*380*880 | 120 | |||
| GTB-30/100 | 30 | 300 | 580*380*880 | 160 | |||
| GTB-50/100 | 50 | 500 | 650*460*1010 | 230 |
|
|
