Brand Name : | Delta |
Model Number : | SFA |
Certification : | ISO9001 |
Price : | USD1.0 SF6 Analyzer / set |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 100 sets SF6 Analyzer / month |
Delivery Time : | Within 10 days after the order is confirmed |

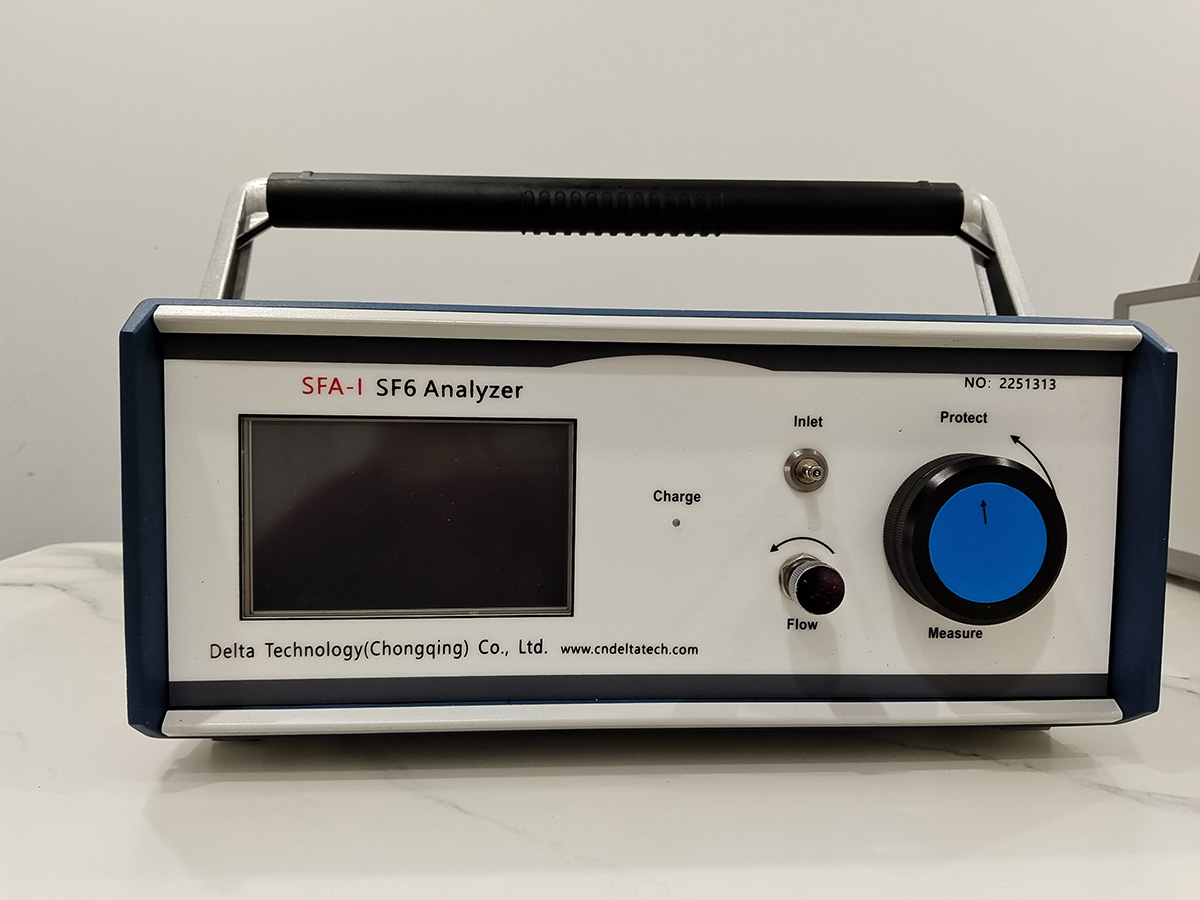

SFA SF6 Gas Parameters Testing High Accuracy SF6 Dew Point Meter
Brief Introduction:
SFA SF6 Gas Parameters Testing High Accuracy SF6 Dew Point Meter can test dew point, micro-water content(ppm), SF6 purity, concentration of SO2, H2S, CO, HF, etc.
Main Features:
Main Parameters:
Purity | Measuring range: 0%~100% | |
Accuracy: ±0.5% | ||
Measuring time: < 2min | ||
Dew point | Measuring range: -80℃~+20℃ | |
Accuracy: ±0.5℃(-80℃~-60℃) | ||
Response time(+20℃) | 63% need 5S, 90% need 45S (-60℃~+20℃) | |
63% need 10S,90% need 240S (+20℃~-60℃) | ||
H2S | Measuring range: 0~200ppm | |
The minimum detectable amount: ≤0.1ppm | ||
Accuracy: ±0.5% | ||
Stability: 0~200ppm | ||
Repeatability: ≤2% | ||
SO2 | Measuring range: 0~200ppm | |
The minimum detectable amount: ≤0.1ppm | ||
Accuracy: ±0.5% | ||
Stability: 0~200ppm | ||
Repeatability: ≤2% | ||
HF | Measuring range: 0~20ppm | |
The minimum detectable amount: ≤0.01ppm | ||
Accuracy: ±0.5% | ||
Stability: 0~20ppm | ||
Repeatability: ≤2% | ||
CO | Measuring range: 0~1000ppm | |
The minimum detectable amount: ≤1ppm | ||
Accuracy: ±0.5% | ||
Stability: 0~1000ppm | ||
Repeatability: ≤2% | ||
Temperature | -40℃~+60℃ | |
Humidity | 0~100%RH | |
Power supply | AC 220V | |
Built-in rechargeable battery | ||
Battery | Charging time: 20 hours; can work for 10 hours | |
Weight | 5kg | |
Dimension | 25cm*15cm*30cm | |
Working temperature | -40℃~+80℃ |
![]() |
