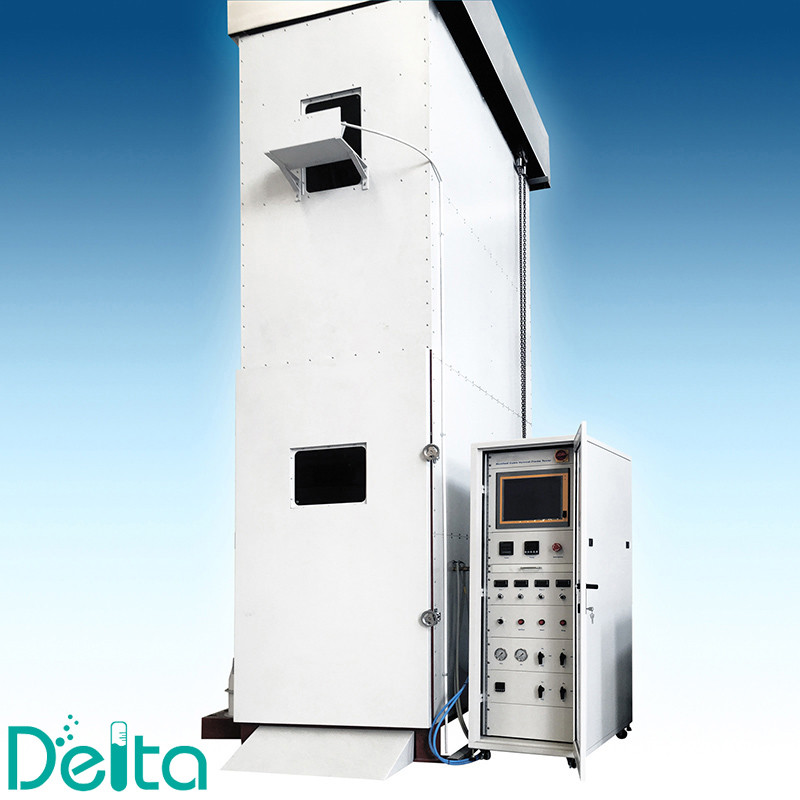

Bcv Bunched Cable Fire Testing Cable Burning Tester
Introduction:
BCV Bunched Cable Fire Testing Cable Burning Tester is a series
conforming to IEC 60332-3-10 (Category A~D) standards.
The test measures the expansion of vertical flame to the
electronically or optically vertical cable or wire using the
standard ignition source while supplying a certain amount of air to
a chamber of a defined volume.
Additionally, if bunched cable vertical flame spread testers burner
is adjusted by 20 degrees angle, it can be measure under IEEE
383(IEEE 1202) standard. Also, if Heat Release Facility is
attached, it can measure fire dynamics value as H.R.R (Heat Release
Rate), S.P.R (Smoke Production Rate) and so on.
ASTM: ASTM E662
ISO: ISO 5659-2
IMO: FTPC Part 2
NES: NES 711
IMO;
Rail;
Wire&Cable;
Test chamber has the dimension of 1,000±100(W) x 2,000±100(D) x
4,000±100(H) mm.
The bottom surface of the test chamber is higher than the ground
while the rear side is supplemented with insulated material to
insulate it from heat.
At the lower section of the test chamber, there is a 800±20(W)x
400±10(D) sized hole at the 150±10mm position from the front side
of the chamber to supply the air.
There is a 300±30(W)x1,000±100(D) sized exhaust hole at the rear
corner of the top section of the test chamber to allow emission of
the smoke during the test.
A flame trap is installed at the front side of the burner of the
vertical flame spread tester to prevent backfire by propane to
ensure the utmost safety.
Unlike the conventional IEC60332-3 equipment, the vertical flame
spread tester records all control and test conditions with the
computer to add user friendliness.
If stop the excessive combustion test due to Water Spray device
installed for extinguish.
The program on the requirement on standard and 70,000Btu/h can be
program.
Wide stainless steel ladder dimensions: 500(W) ×3, 500(H) mm.
Standard stainless steel ladder dimensions: 800(W) ×3, 500(H).
Two sets of standard propane burner and venturi mixtures.
Follow the standard category can program for select a test.
| No. | Item Name | BCV Bunched Cable Fire Testing Cable Burning Tester |
| 1 | Dimension | 1120 mm (W) x 2200 mm (D) x 5070 mm (H) |
| 2 | Weight | 500kg |
| 3 | Power supply | 110V AC 60Hz / 230V AC 50Hz, 5A |
| 4 | Ambient temperature | Operating 10oC to 35oC |
| 5 | Gas supply | Air and propane |
|
|
