| Brand Name : | Delta |
| Model Number : | CBA-II |
| Certification : | ISO9001 |
| Price : | USD1.0 / set |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 100 sets Circuit Breaker Tester / month |
| Delivery Time : | Within 7 days after the order is confirmed |

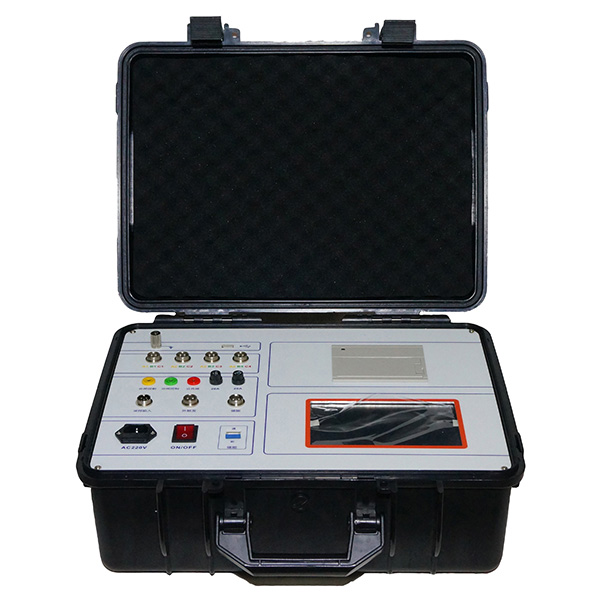

CBA-II Reasonable Price Multifunctional Circuit Breaker Tester
Introduction:
Parameters:
| No. | Item Name | CBA-II High Voltage Switchgear Tester | |
| 1 | Time measurement | Number of contacts to be measured | ≤12 |
| Time setting range | 0 to 6 seconds | ||
| Resolution | 0.01ms | ||
| Error of time measured | ±0.5% | ||
| 2 | Distance measurement | Range | <250mm |
| Resolution | 0.01mm | ||
| Error | ±1mm | ||
| 3 | Internal power | Output Voltage | 30V-260V error:1% |
| Output Current | 0~10A | ||
| 4 | Operating conditions | Power supply | AC220V±10%, 50HZ/60HZ |
| Power consumption | ≤60W | ||
| Working environment temperature | 0~40ºC | ||
| Working environment humidity | ≤90%RH | ||
| 5 | Size and weight | Size of the tester | 46cm*34cm*20cm |
| Net weight | 7kg | ||
| Size after packing | 53*45*63cm | ||
| Weight of packing | 31kg | ||
Functions:
Opening and closing time of 12 contacts
Re-closing time
Asynchronous of closing or opening time of three phases
Clearance between open contacts/gaps, over-travel, over-shoot and
tripping back
Speed at instant of contacts touching (separating)
Max. speed of opening and closing
Average speed of opening and closing
Tripping time and amplitude
Closing resistance measurement
Display and print the speed-distance curve

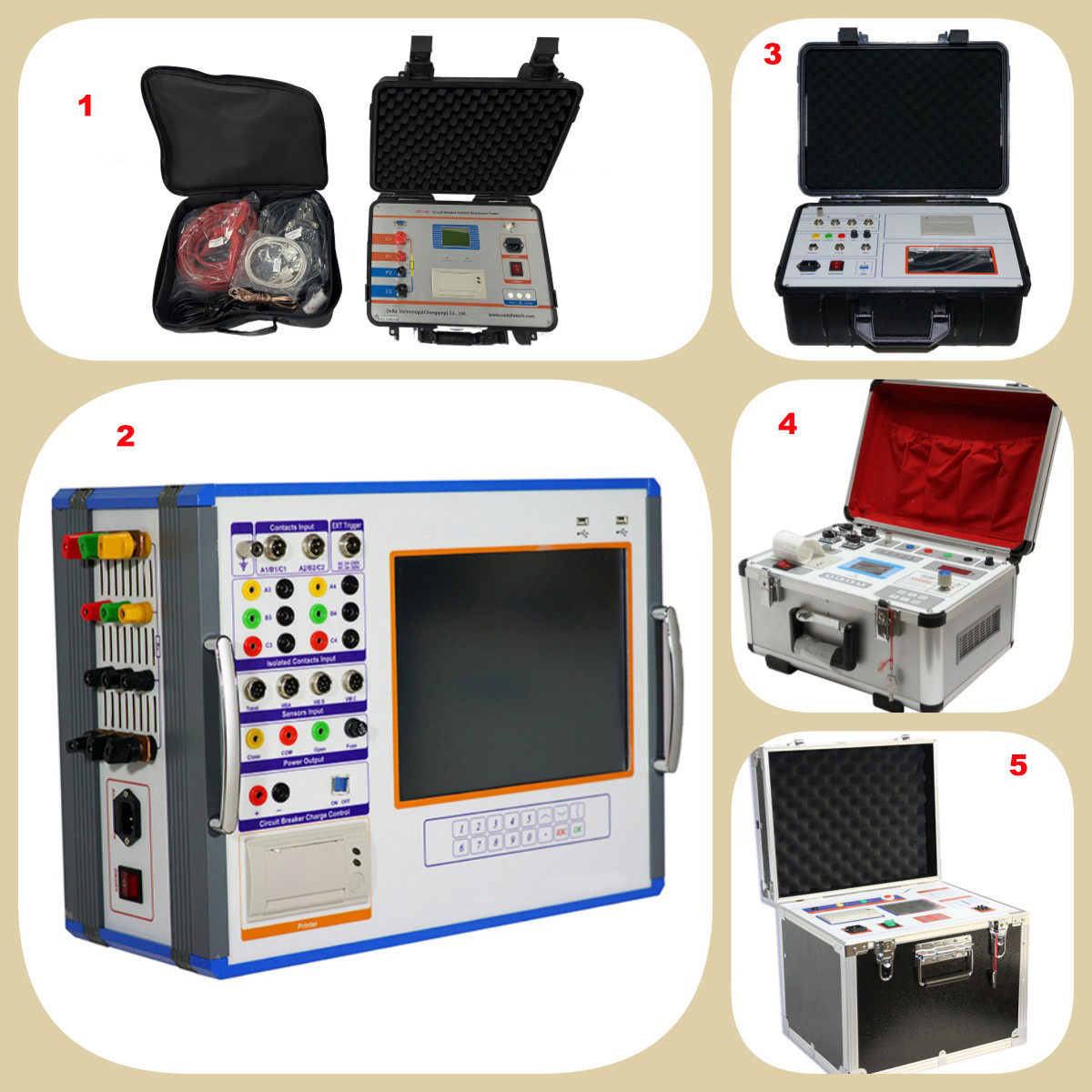

Circuit Breaker Tester Series:
1. WRT Series Circuit Breaker Contact Resistance Tester;
2. CBA-III Automatic Circuit Breaker Analyzer;
3. CBA-II Hot Sale Circuit Breaker Tester;
4. CBA-I Cheap Price Circuit Breaker Tester;
5. ZKD Circuit Breaker Vacuum Degree Tester;
|
|
