| Brand Name : | Delta |
| Model Number : | ZKD |
| Certification : | ISO9001 |
| Price : | USD1.0 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000 sets per month |
| Delivery Time : | 10 days |
Functions:
It can direct quantitative measuring vacuum degree of vacuum switch
interrupter without removing.
It can not only measure the normal range of vacuum degree of
switchgear, but also can measure some vacuum switches which leak
faster.
Comparing with the measuring results of past years, its life can
generally be inferred, prevent accidents.
It is compact, lightweight, fast testing, reliable, stable,
multi-functional and so on.

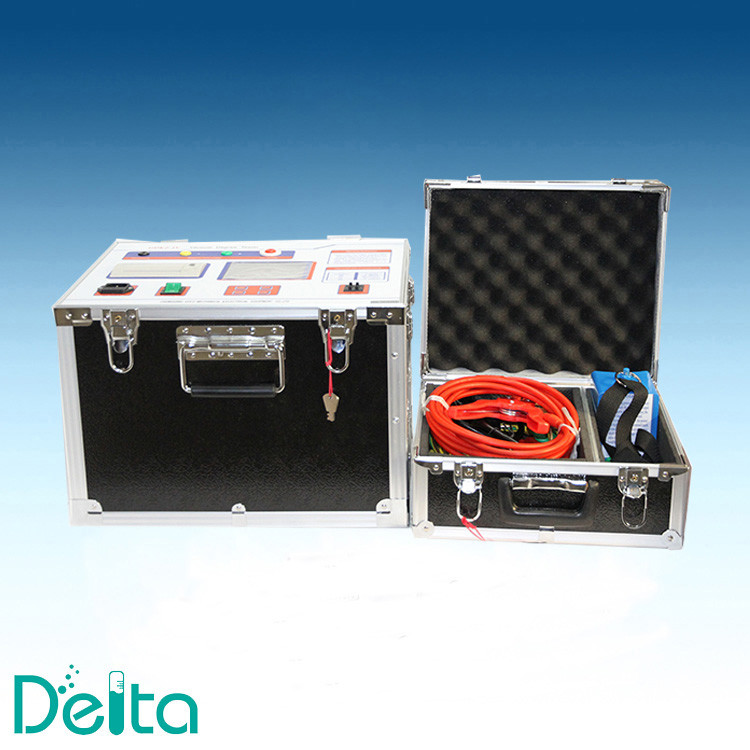

Zkd High Voltage Vacuum Switch Vacuity Tester is the ideal instrument for quantitative measuring vacuum switches.
Parameters:
1 | Detection objects | various models of vacuum switch |
2 | Detection method | using new excitation coil and detect vacuum tube without disassembly |
3 | Application area | This instrument is a all-purpose type, can measure the vacuum of variety models of open magnetic vacuum tube |
4 | Detection range | 10 -5 -10 -1 Pa |
5 | Measurement accuracy | 10 -5 -10 -4 Pa, 10% 10 -4 -10 -3 Pa, 10% 10 -3 -10 -2 Pa, 10% 10 -2 -10 -1 Pa, 10% |
6 | Magnetic field voltage | 1700V |
7 | High-voltage of pulsed electric field | 30KV |
8 | Open distance of switch tube in vacuum test | normal open distance |
9 | Testing environment | -20℃~ 40℃ |
10 | Weight | 12kg |
11 | Dimension | 420 × 320 × 280 (mm) |
12 | Sampler | magnetic coil |
|
|
