| Brand Name : | Delta |
| Model Number : | CBA-I |
| Certification : | ISO9001 |
| Price : | USD1.0 |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000 sets per month |
| Delivery Time : | 10 days |

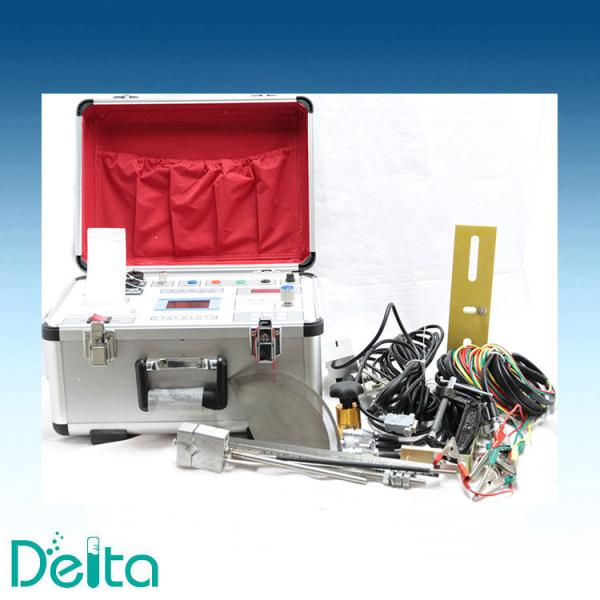

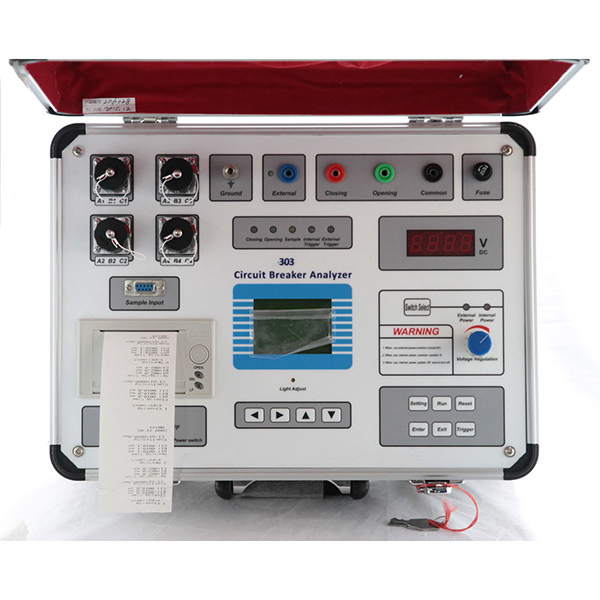

Cba-I Vacuum Switch Breaker Analyzer is designed to meet the need of testing high_voltage switches.
Cba-I Vacuum Switch Breaker Analyzer takes the micro controller unit(MCU) for core to sample, pr℃ess and then output; the main characteristic is that it’s operated in Chinese, for example ,the results are displayed and printed in Chinese.
Cba-I Vacuum Switch Breaker Analyzer has many advantages such as intelligence, multi-function, accurate data, strong anti-jamming, easy operation, small size, beautiful appearance, etc;
Cba-I Vacuum Switch Breaker Analyzer can test the switches as follows:indoors or outdoors switches with less oil or more oil,vacuum switches, SF6 switches and so on.
Closing and opening time measurement of 12 channels
Max difference of closing or opening time measurement of three phases
Bounce time and frequency measurement of breaker closing
Circuit breaker closing and opening speed measurement
Travel-time, Coil current-time curve of circuit breaker operation measurement
Clearance of circuit breaker measurement
Variable DC circuit breaker operation power supply
Print test results by internal micro printers
Time measurement range | 6000ms, resolution 0.1ms |
Time measurement error | <1%RDG+0.2ms |
Speed measurement | Range 2m/s resolution 0.01m/s max error<0.1m/s |
Range 20m/s resolution 0.01m/s max error<0.2m/s | |
Travel measurement | Range 250.0mmresolution 1mmmax error 1mm |
DC Power out | DC30V~250V/10A (instantaneous) |
Travel sensors configuration | grating and angle |
Test standard | IEC62271 |
LCD | 128*64 |
Power supply | AC220V±10% 50Hz/60Hz |
Working Condition | Temperature: 0~50°C humidity: <85% |
|
|
