| Brand Name : | Delta |
| Model Number : | BDV-A |
| Certification : | ISO9001 |
| Price : | USD1.0 Oil Withstand Voltage Tester / set |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000 sets Oil Withstand Voltage Tester / month |
| Delivery Time : | Within 10 days after the order is confirmed |

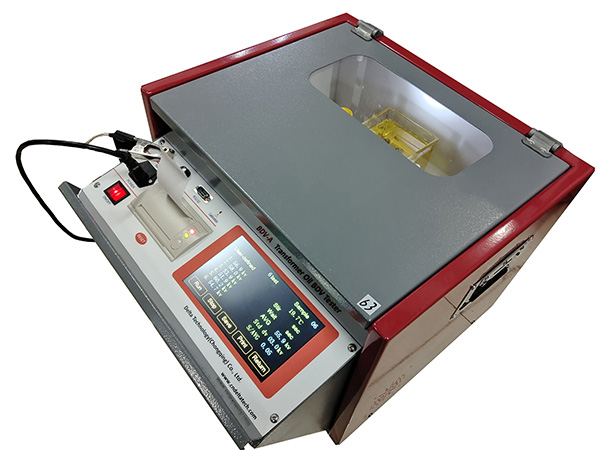

BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand
Voltage Tester is developed according to the national standard
IEC156 Insulating Oil Dielectric Strength Testing Method ;

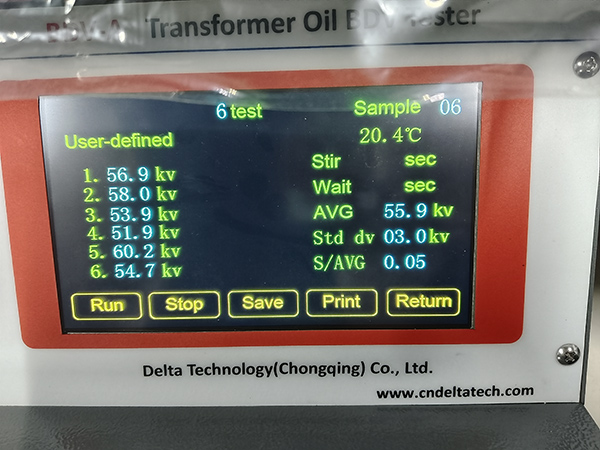

BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand
Voltage Tester has large LCD display, micro-printer and can store
100 groups data;
BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand
Voltage Tester is multi-functional, stable, and easy for operation.
| No. | Item Name | BDV-A 100kV With Oil Temperature Test Insulation Oil Withstand Voltage Tester |
| 1 | Output voltage | AC 0V~80KV |
| 2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
| 3 | Max. test times | 9 |
| 4 | Stir time | 0~999s |
| 5 | Wait time | 0~999s |
| 6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
| 7 | Resolution | 0.1KV |
| 8 | Temperature measurement range | 0°C to 70°C, or better |
| 9 | Temperature resolution | 1°C, or better |
| 10 | Data storage | 100 groups |
| 11 | Weight | 38kg |
| 12 | Size | 550mm*500mm*580mm |
| 13 | Power supply | AC220V, 50Hz |
| 14 | Working environment | Room temperature to 45°C, humidity<85% |
Breakdown test of user-defined
Proof test
IEC60156/IS6792/BS5874 test
ASTM D1816 standard test
ASTM D877 standard test
5 minutes standard test
Manual test
Calibration interface for customers
Uploading data to PC and making word report automatically Result print
|
|
