| Brand Name : | Delta |
| Model Number : | TTR-I |
| Certification : | ISO9001 |
| Price : | USD1.0 / set |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000 Sets / Month |
| Delivery Time : | In 10 days after the order is confirmed |

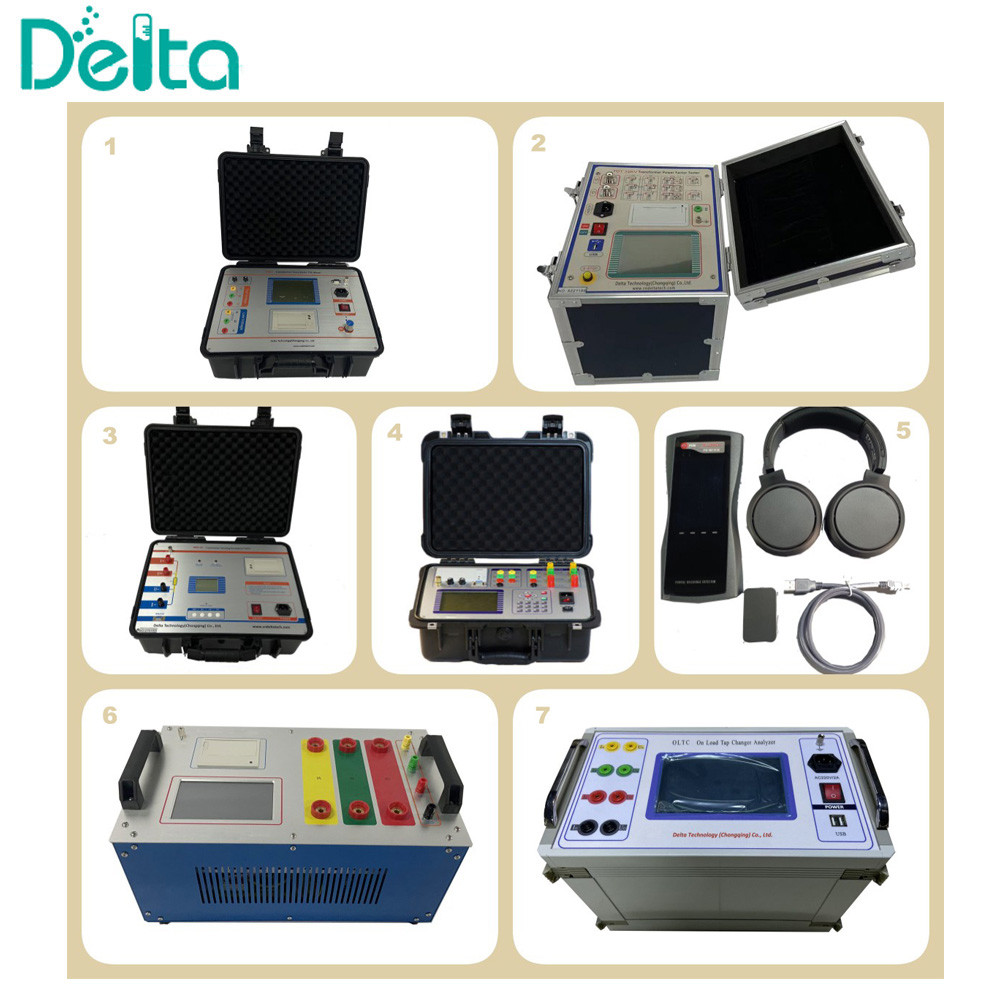

Below are the Transformer Testing Equipment we have,
7. OLTC Transformer On-Load Tap Changer Tester
Detailed introduction of TTR-I Transformer Turns Ratio Tester
According to the relevant IEC standards, in the process of power
transformer production and maintenance, the transformer ratio test
is a must-do item, which can effectively supervise the quality of
the transformer during delivery and use, and prevent the
transformer from short circuit, open circuit, connection error,
Internal fault or contact fault of the pressure switch.
TTR-I Affordable Price Three Phase Transformer Turns Ratio Test
Transformer Tester is designed according IEC76-1 and IEC60044, it
is a multi-functional, easy operation turns ratio tester.
| No. | Item Name | TTR-I Affordable Price Three Phase Transformer Turns Ratio Test Transformer Tester |
| 1 | Ratio measurement range | 1-10000 |
| 2 | Group measurement | 1-12 |
| 3 | Phase measurement error | 1 degree |
| 4 | Ratio measurement error | 1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG |
| 5 | Test voltage | AC 0~80V continuously, frequency 50Hz |
| 6 | Power supply | AC220V ± 10%, 50Hz/60Hz |
| 7 | Working environment | 0-50°C, ≤85%RH |
| 9 | Size | 400mm*350mm*200 mm |
| 10 | Weight | 7kg |
| 11 | Length of test cables | 8 meters |
The test power supply is generated by the internal power amplifier
of the tester, and the waveform distortion rate is less than 0.5%
and is not affected by the quality of power supply.
Automatic voltage regulation, with automatic protection functions
such as transformer reverse connection, over-current, etc., to
avoid damage to the instrument due to incorrect operation.
It can be used for power transformer, CT and PT ratio detection.
Convenient standard transformation ratio setting template, don't
need to manually calculate the standard transformation ratio value.
It is very light, only 20KG. It's easy to carry. It's suitable for
field test.
Photos:
|
|
